- Overview:

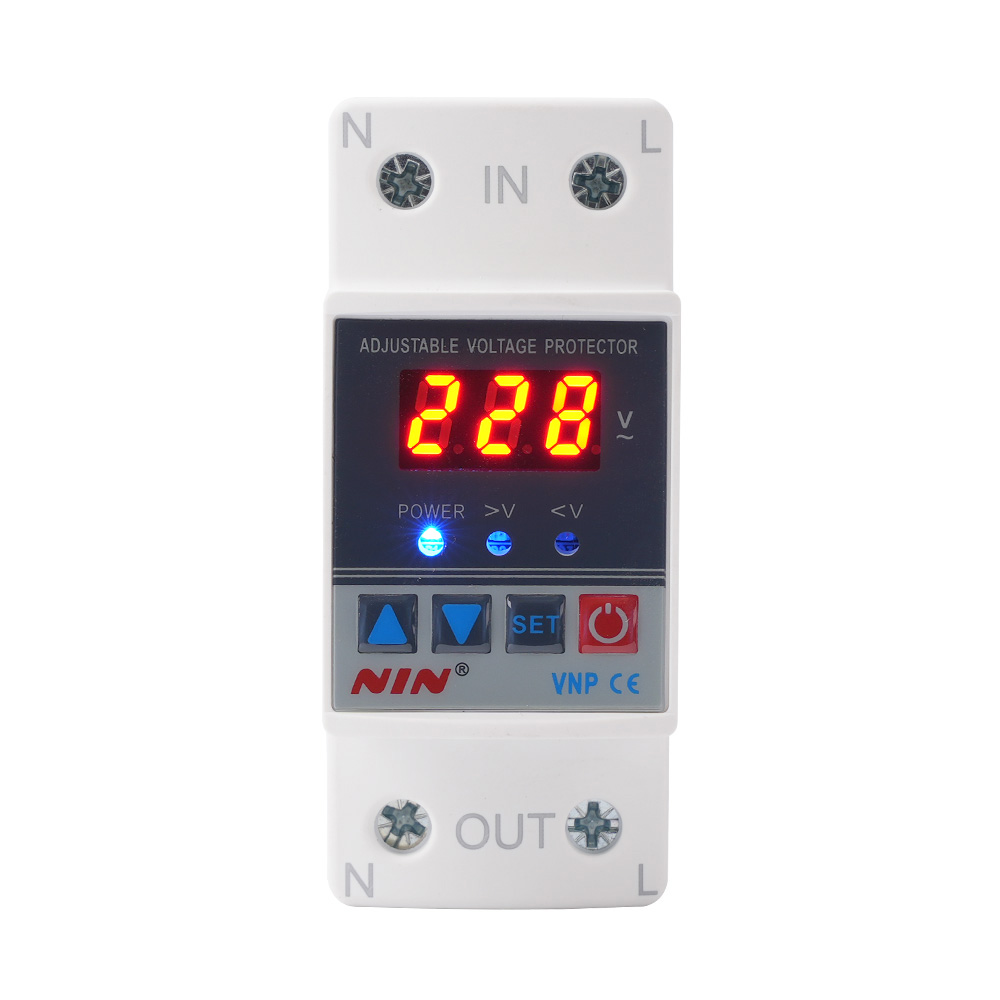

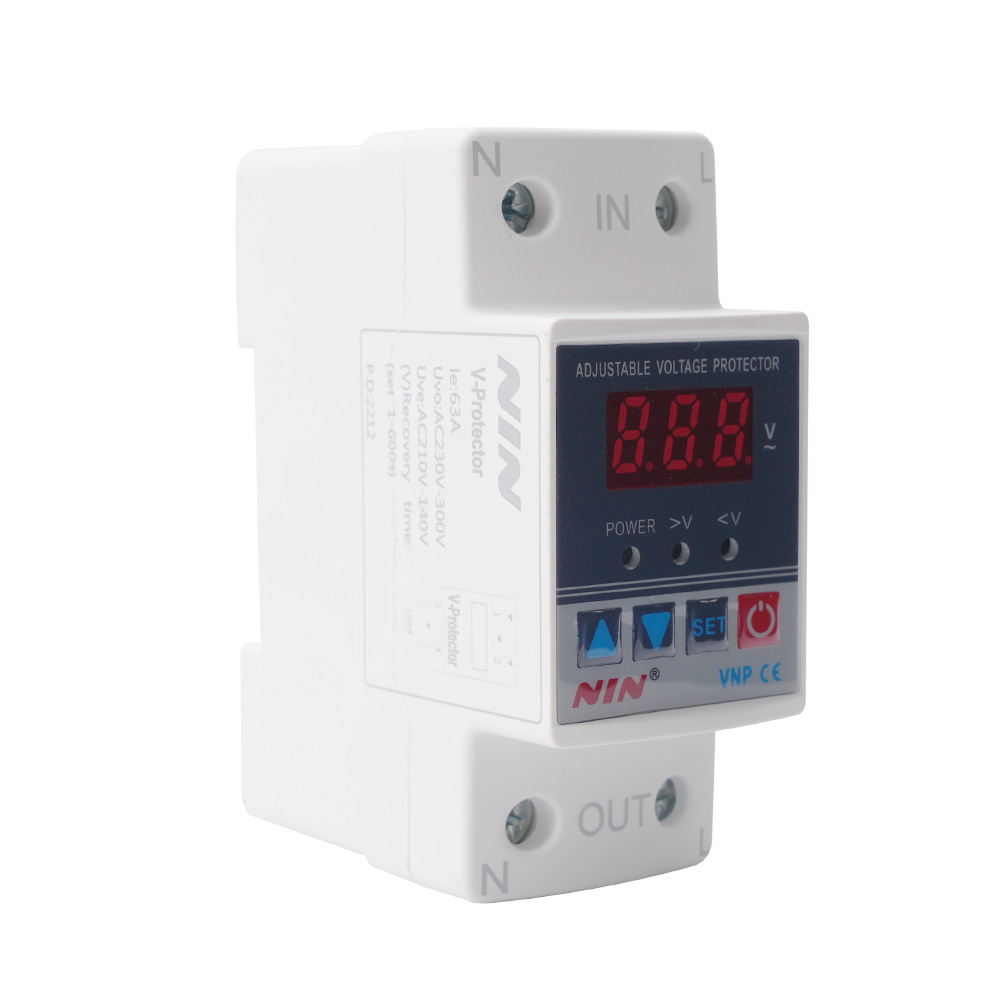

- Adjustable relay display for voltage and current adjustable voltage protector AC breaker
- Technical data:
-
Rated supply voltage AC 220V Operation voltage range AC 80V-350V Rated frequency 50/60Hz Overvoltage(>U)setting range 230-300V Undervoltage(<U)setting range 210~140V >U and < U trip delay 0.5S Reset/start delay 1~600S Voltage measurement accuracy 2%(Not exceeding 2% of the overall range) Rated insulation voltage 400V Output contact 1NO Electrical life 105 Mechanical life 106 Protection degree lp20 Pollution degree 3 Altitude ≤S2000m Operatintg temperature -50'C~55'C Humidity ≤50%at40°C(without condensation) Storage temperature -30°C~70°C Rated current 40/63A(subject to prodect label)
- Default setting:
- Function Setting:
- Wiring and shape dimensions:
