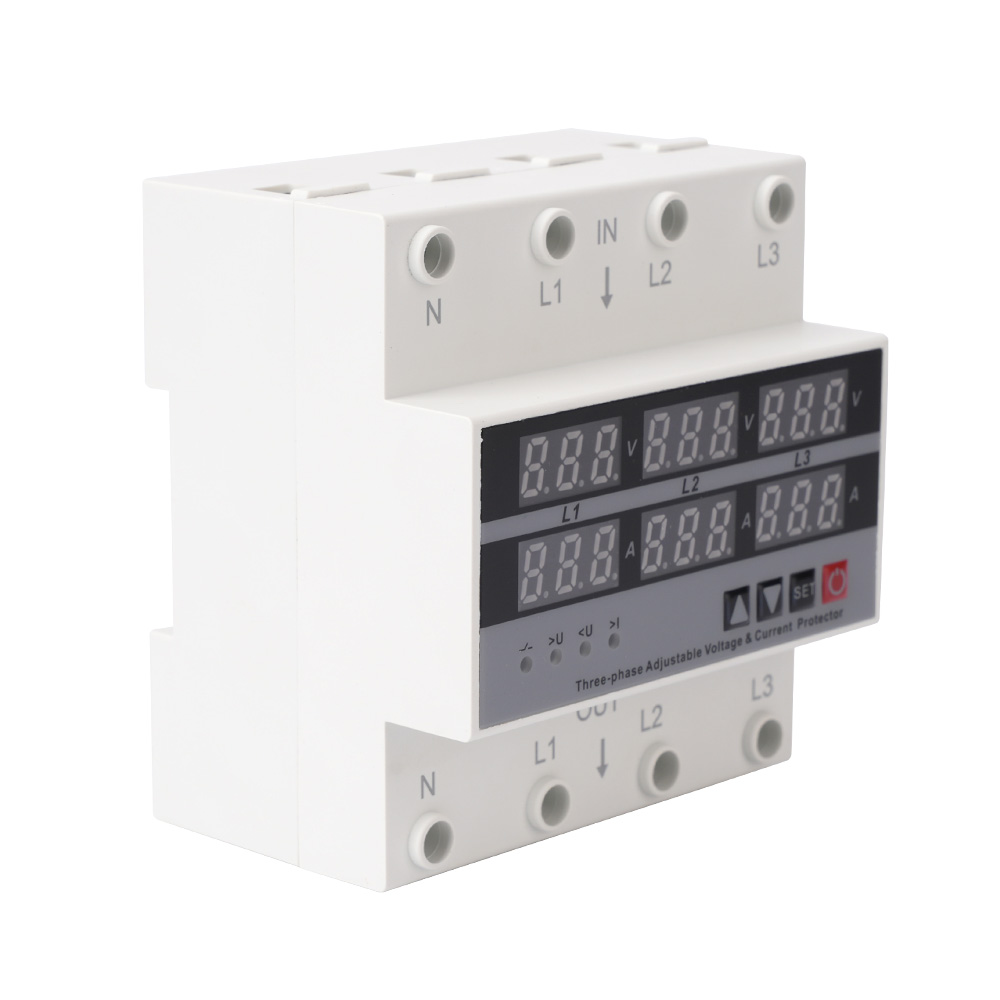

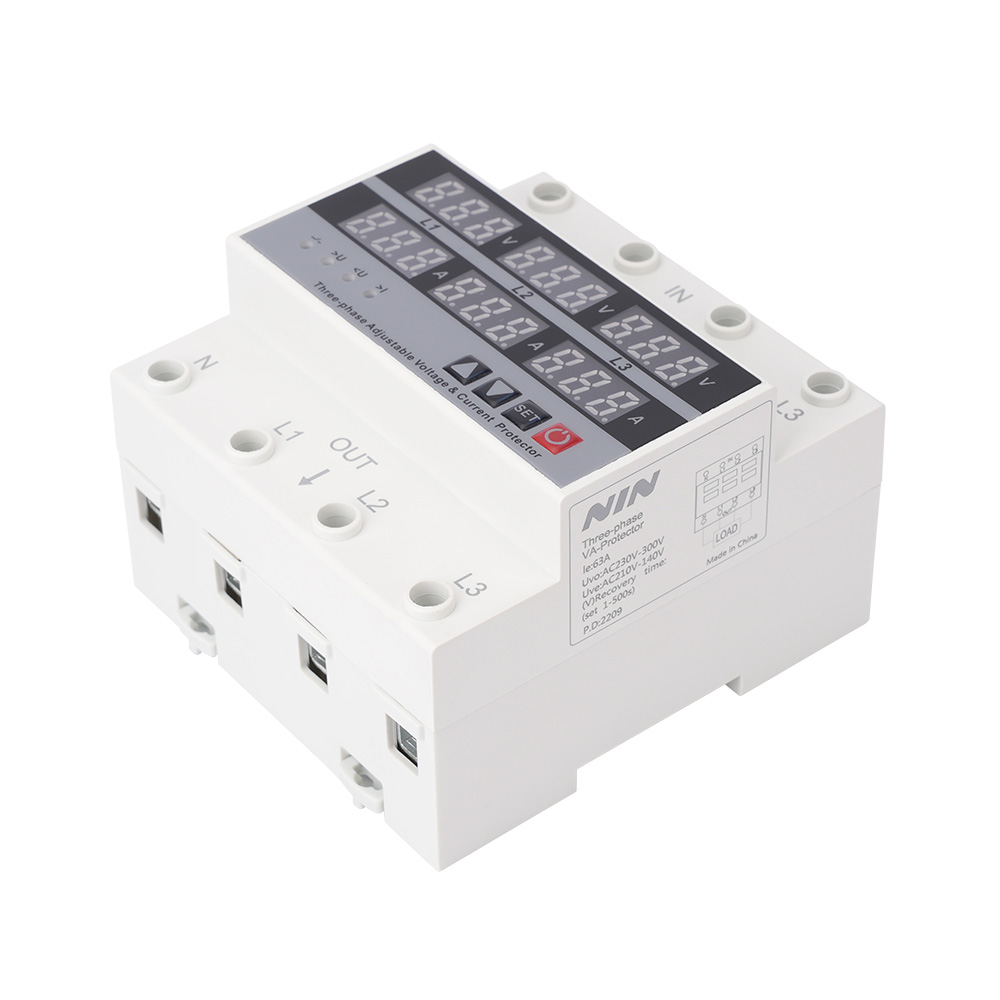

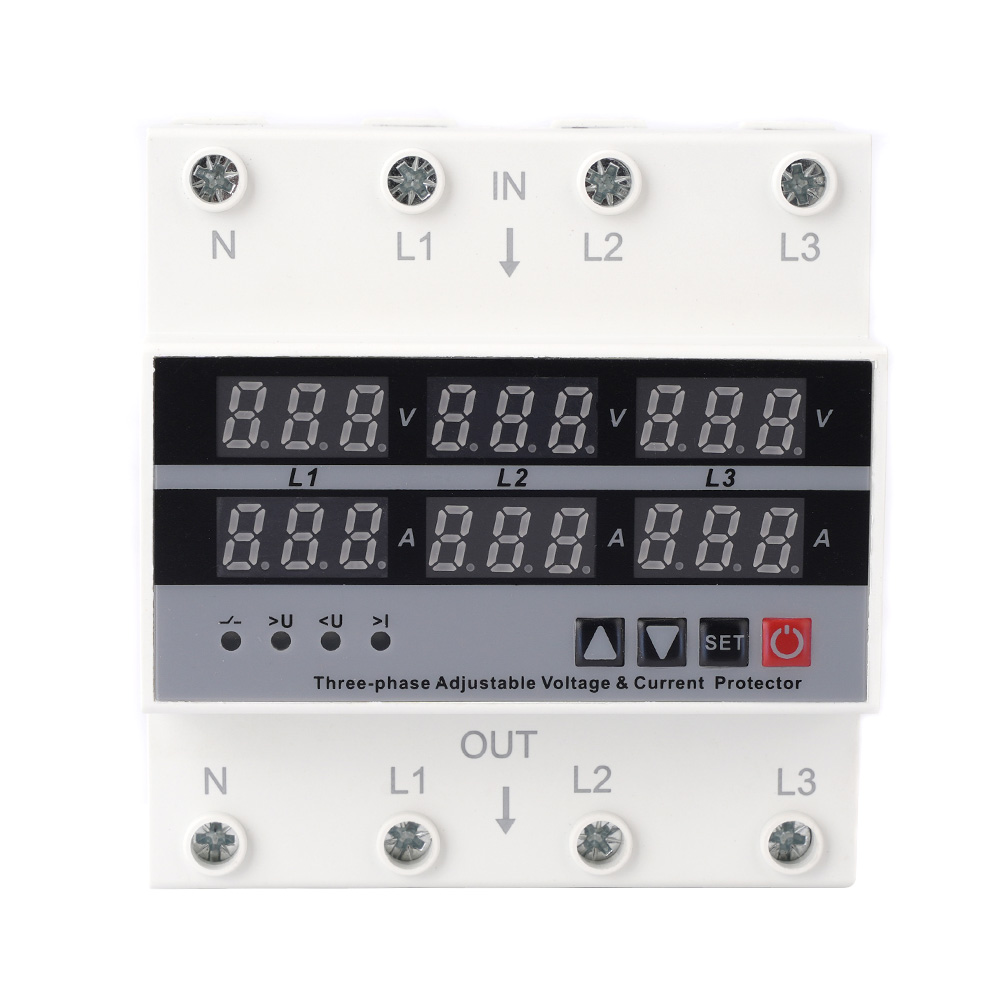

NP8-100N Three-phase voltage and Current Protector

Overview:: Three Phase 3P+N Adjustable Over and Under Voltage Protector with Over Current Protection Automatic Recovery Protective Device.

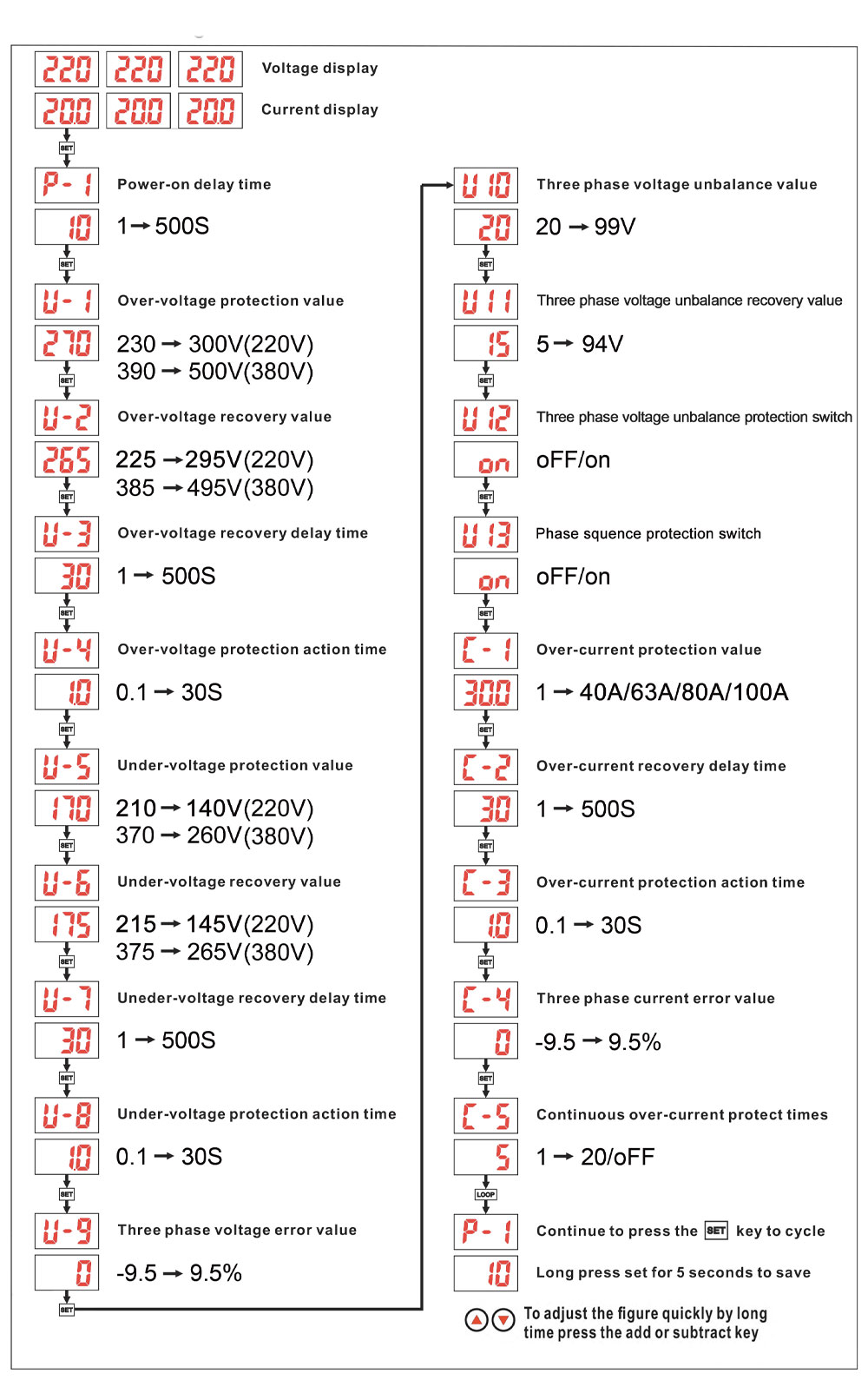

Functions:: 1.Over-voltage protection: Adjustable; 2.Under-voltage protection: Adjustable; 3.Over-Current protection: Adjustable; 4. Asymmetry protection; 5.Phase squence protection; 6. Active time and reconnect time adjsutable; 7. Voltage and current can be manually calibrated

Technical data:

Rated supply voltage	AC 220V	AC 380V
Operation voltage range	AC 80V-400V(single phase)	AC 140V-700V(single phase)
Rated frequency	50/60Hz	50/60Hz
Electric current(>A)setting range	1~40A/63A/80A/100A	1~40A/63A/80A/100A
Overvoltage(>U)setting range	230-300V	390-500V
Undervoltage(	210~140V	370~260V
Rated current	40A/63A/80A/100A	40A/63A/80A/100A
>U and < U trip delay	0.1-30S	0.1-30S
Reset/start delay	1~500S	1~500S
Voltage measurement accuracy	2%	2%
Rated insulation voltage	400V	700V
Output contact	3NO	3NO
Electrical life	10⁵	10⁵
Mechanical life	10⁶	10⁶
Protection degree	lp20	lp20
Pollution degree	3	3
Altitude	≤2000m	≤2000m
Operatintg temperature	-50°C~55°C	-50°C~55°C
Humidity	≤50%at40°C(without condensation)	≤50%at40°C(without condensation)
Storage temperature	-30°C~70°C	-30°C~70°C

Rated supply voltage	AC 220V				AC 380V
Current specification	40A	63A	80A	100A	40A	63A	80A	100A
Rated operating current(ln,A)	40	63	80	100	40	63	80	100
Maximum operatng current lmax(A,with 10 min)	63A	80A	100A	125A	63A	80A	100A	125A
Max power of load(KW)	8.8	13.9	17.6	22	15.2	24	30.4	38
