- Functions:
- 1.Over-voltage protection
- 2.Under-voltage protection
- 3.Automatic recovery
- 4.Voltage display
- 5.Voltage manually calibration
- Specification:
- Rated voltage: 220V; Frequency: 50Hz/60HZ
- Over current protection: 40A/63A (adjustable)
- Under-voltage action switch-off value: 210V-145V (adjustable)
- Over-voltage action switch-off value: 230V-300V (adjustable)
- Reconnect time (delay on time): 1s-300s (default: 5s)
- Error in real-time current, voltage : ≤2%
- Overview:

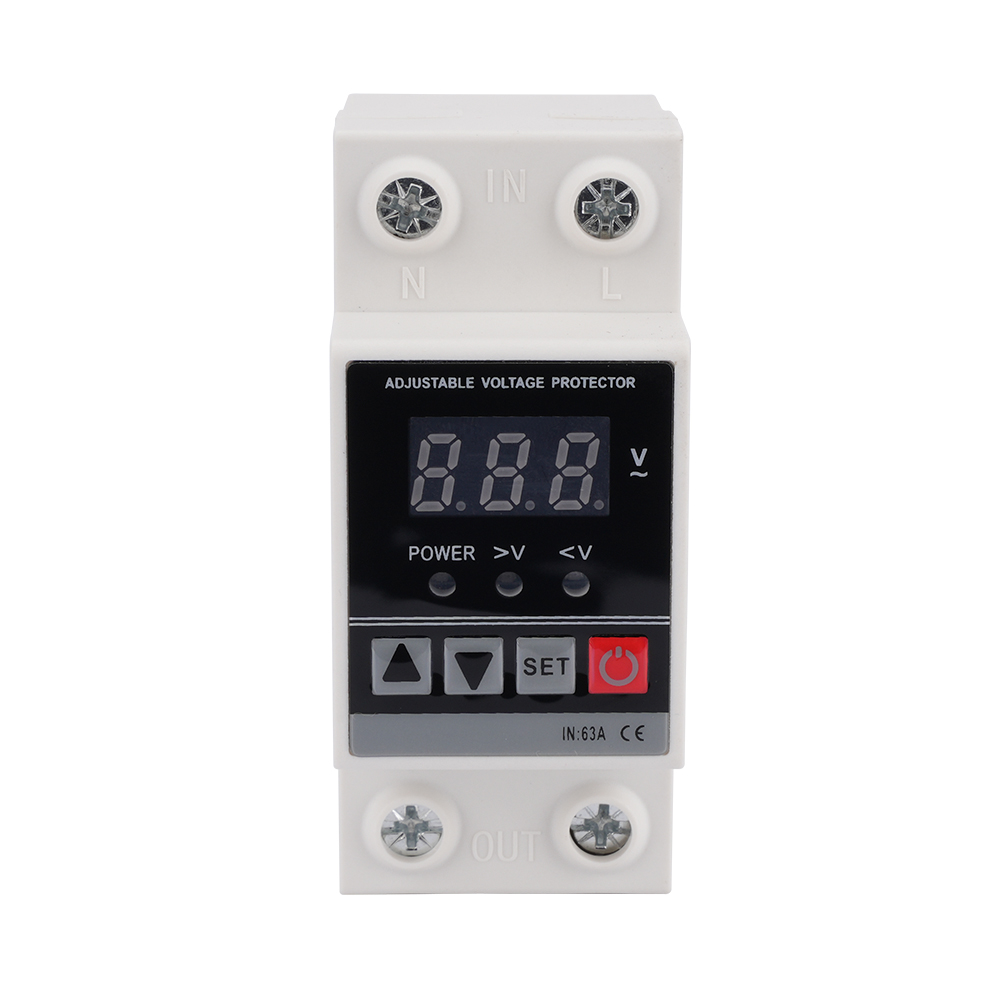

- Adjustable relay display for voltage and current adjustable voltage protector AC breaker
- Technical data:
-
Rated supply voltage AC 220V Operation voltage range AC 80V-350V Rated frequency 50/60Hz Overvoltage(>U)setting range 230-300V Undervoltage(<U)setting range 210~140V >U and < U trip delay 0.5S Reset/start delay 1~600S Voltage measurement accuracy 2%(Not exceeding 2% of the overall range) Rated insulation voltage 400V Output contact 1NO Electrical life 105 Mechanical life 106 Protection degree lp20 Pollution degree 3 Altitude ≤S2000m Operatintg temperature -50'C~55'C Humidity ≤50%at40°C(without condensation) Storage temperature -30°C~70°C Rated current 40/63A(subject to prodect label)

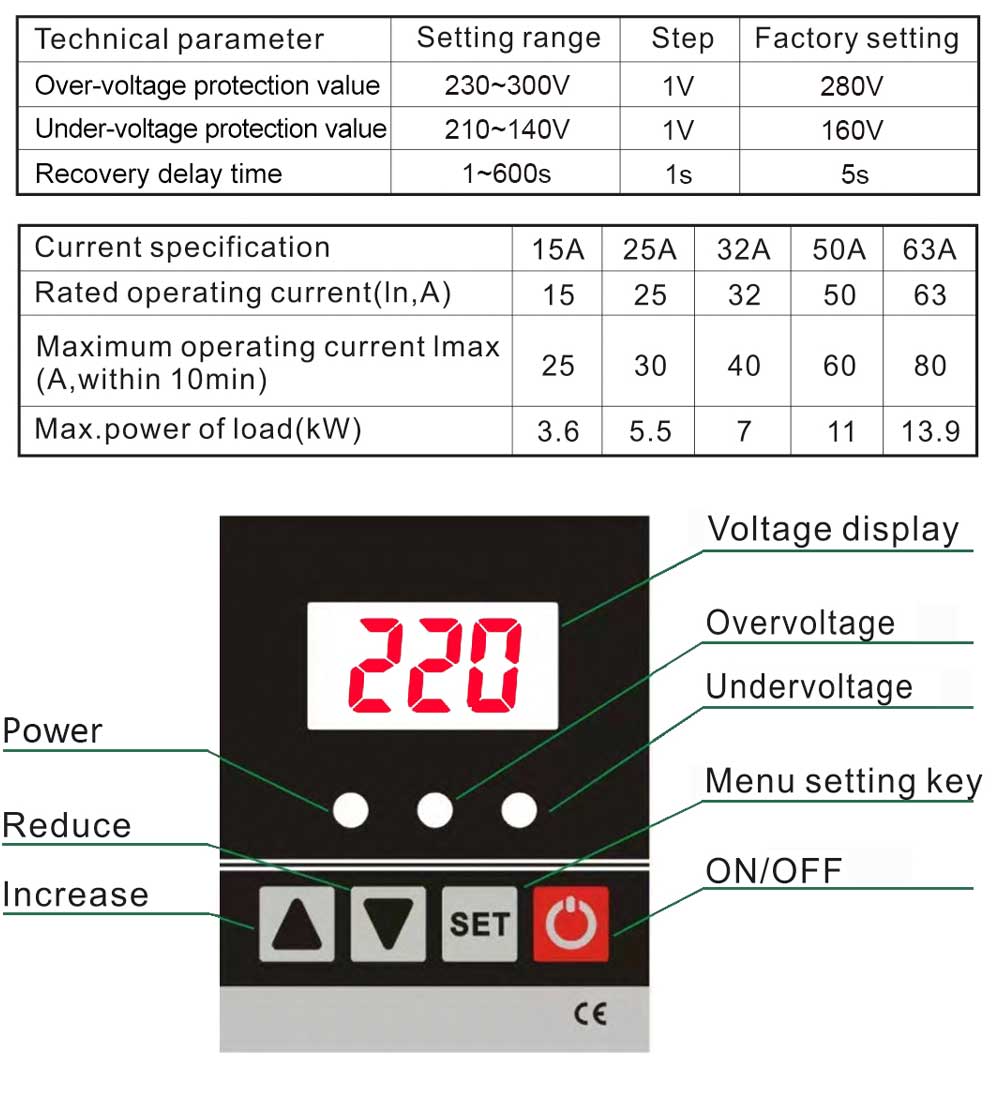

- Default setting:

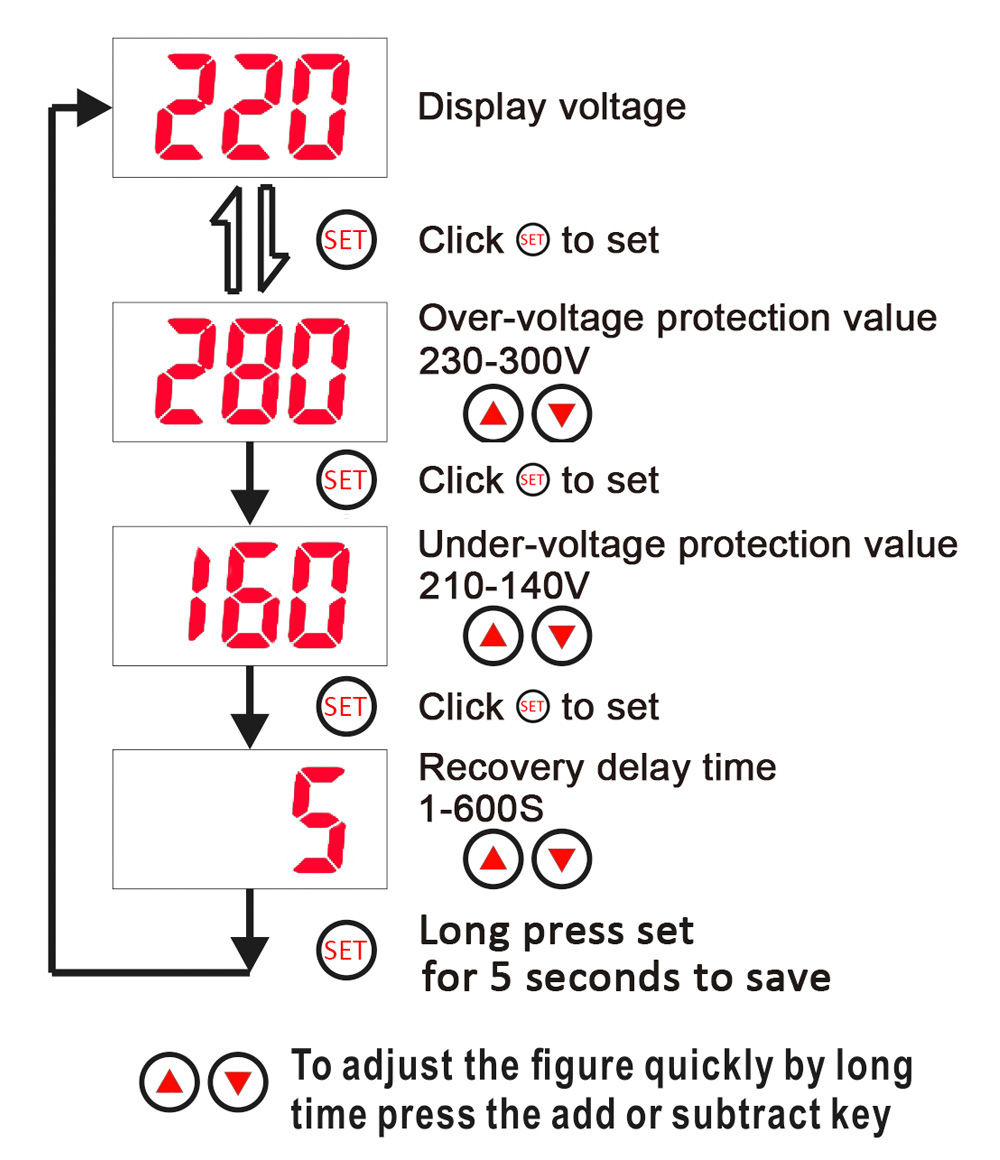

- Function Setting:

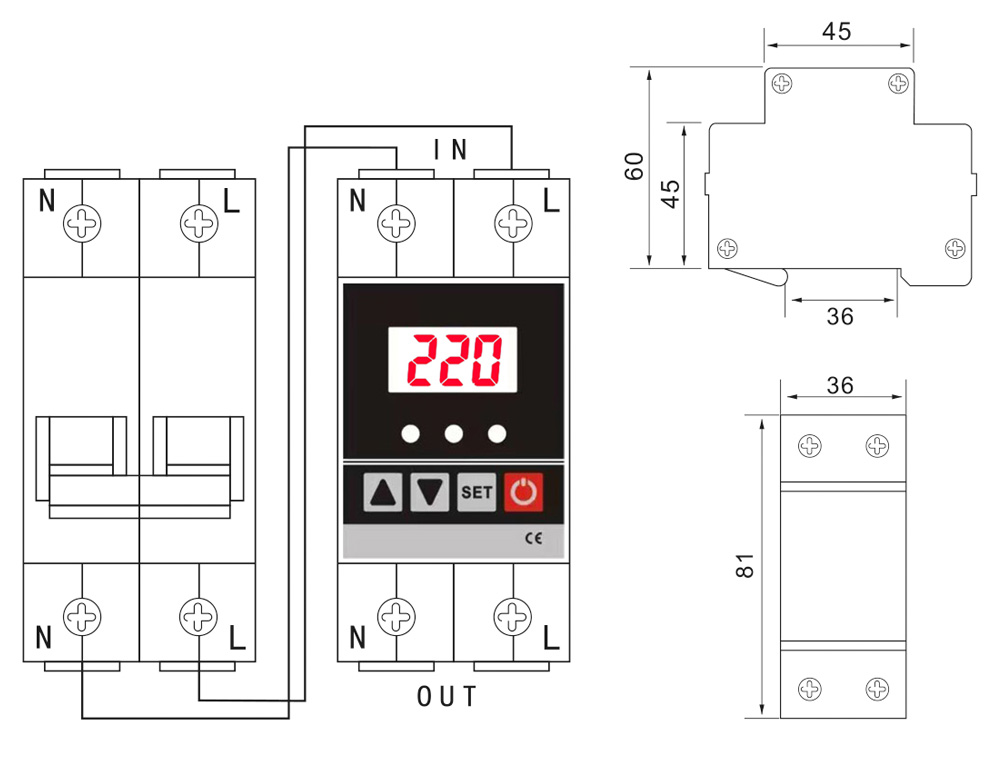

- Wiring and shape dimensions:
