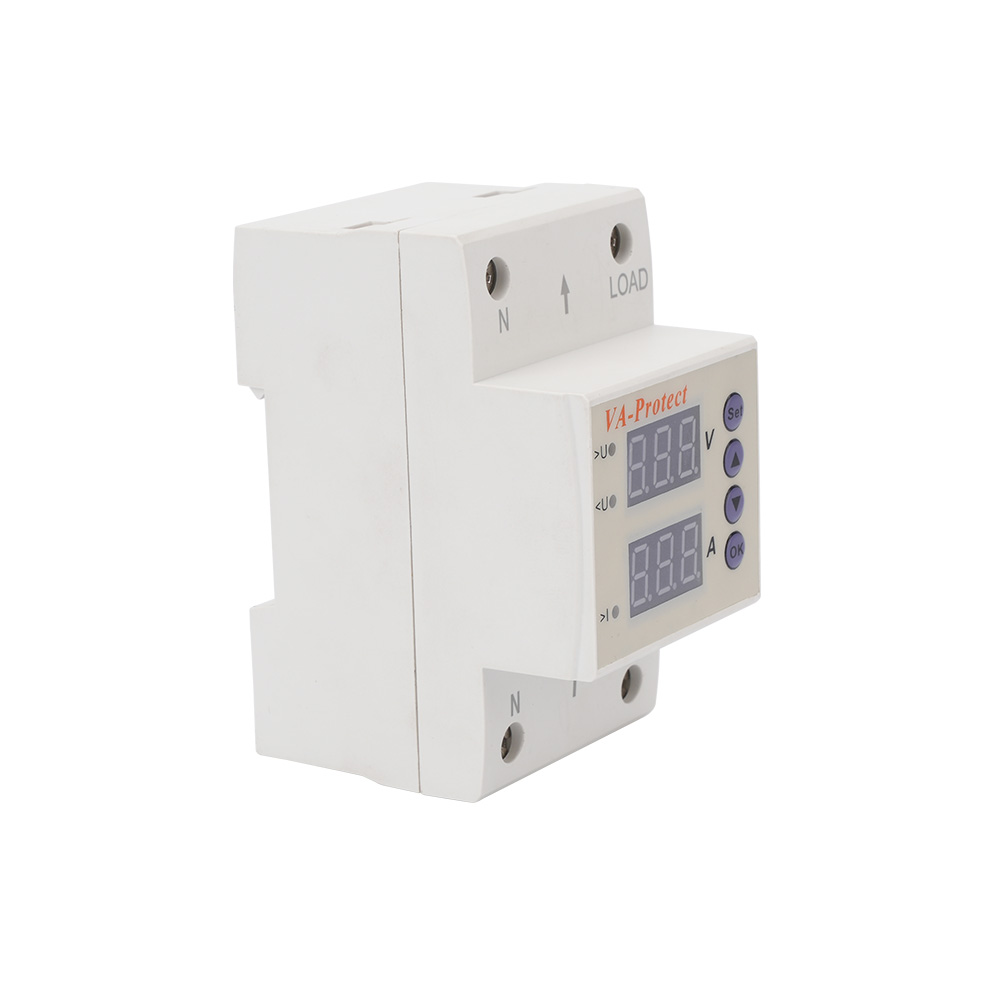

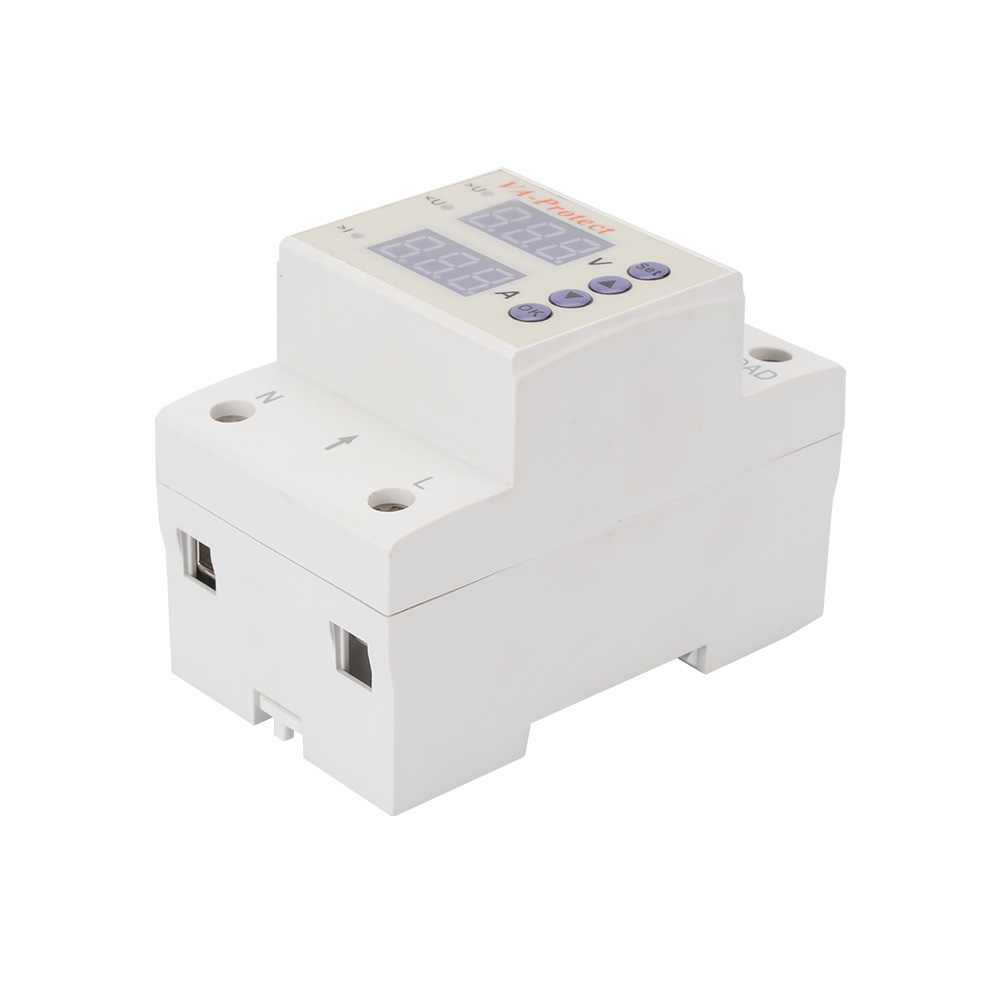

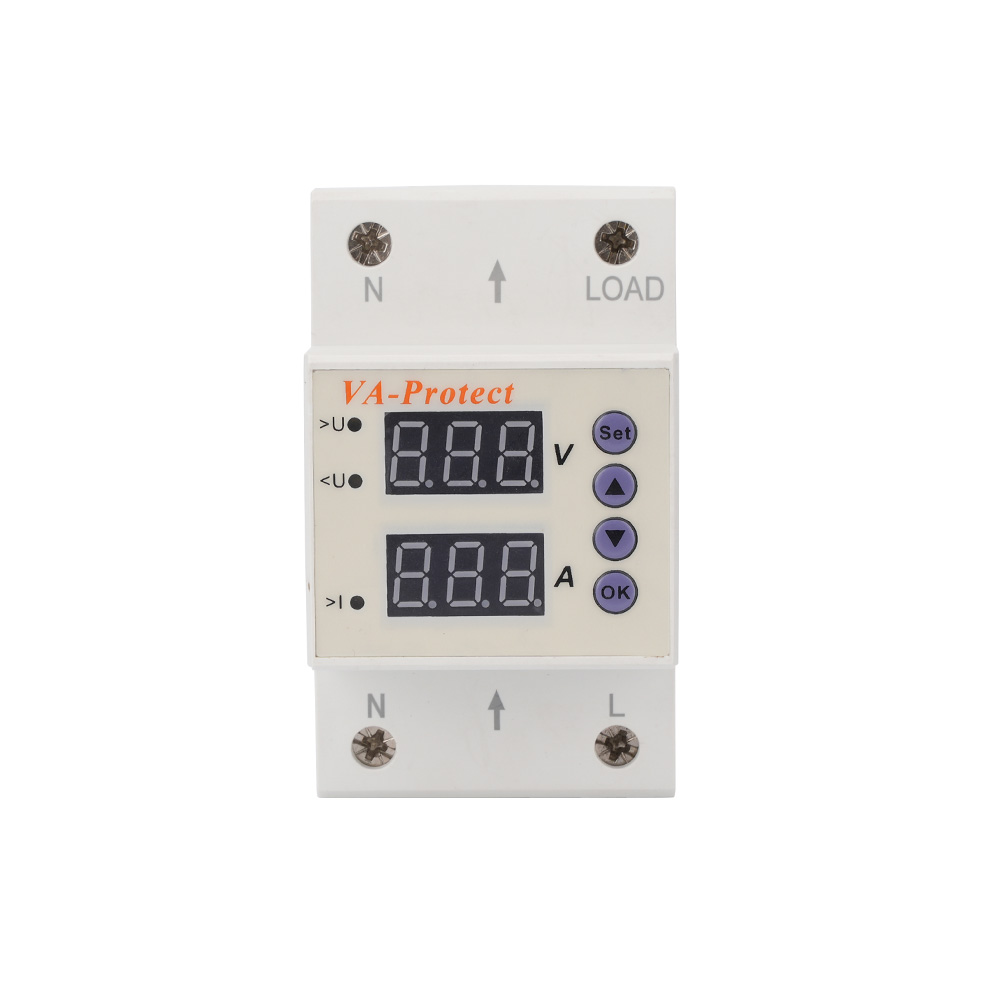

- Din rail adjustable over under voltage protector device protective relay Digital current voltage protector.
- Digital display self-compound over-under-voltage and over-current auto-reclosing protector is a comprehensive intelligent protector integrating over-voltage protection, under-voltage protection, over-current protection and over-current protection. When there is over-voltage fault, under-voltage fault and over-current fault in the circuit, this product can cut off the power supply instantly and protect the electrical equipment from being burnt out.When the line returns to normal, the protector can automatically restore power.
- The overvoltage value, undervoltage value, overcurrent value and delay value of this product can be set by itself, and the corresponding parameters can be adjusted according to the actual situation of users.
- Technical data:
-
Rated supply voltage AC 220V Operation voltage range AC 80V-400V(single phase) Rated frequency 50/60Hz Electric current(>A)setting range 1-40/63A Overvoltage(>U)setting range 230-300V Undervoltage(<U)setting range 210~140V Rated current 40/63A(subject to product label) >U and < U trip delay 0 1-30S Reset/start delay 1~500S Voltage measurement accuracy 2%(Not exceeding 2% of the overall range) Rated insulation voltage 400V Output contact 1NO Electrical life 105 Mechanical life 106 Protection degree lp20 Pollution degree 3 Altitude ≤2000m Operatintg temperature -50'C~55'C Humidity ≤50%at40°C(without condensation) Storage temperature -30°C~70°C
- Features:
- A. Small size but high switching capacity.
B. Built-in high performance MCU provides precise voltage protection.
C. Energy-saving, driven by instantaneous impulse coil.
D. Cost-effective, improved circuit design consumes very low power.
E. Flame retardant cover provides good fire, heat and weather resistance.
F. Withstand the impact voltage: 5KV.
G. Outline Modulus Design: Rail mounting.

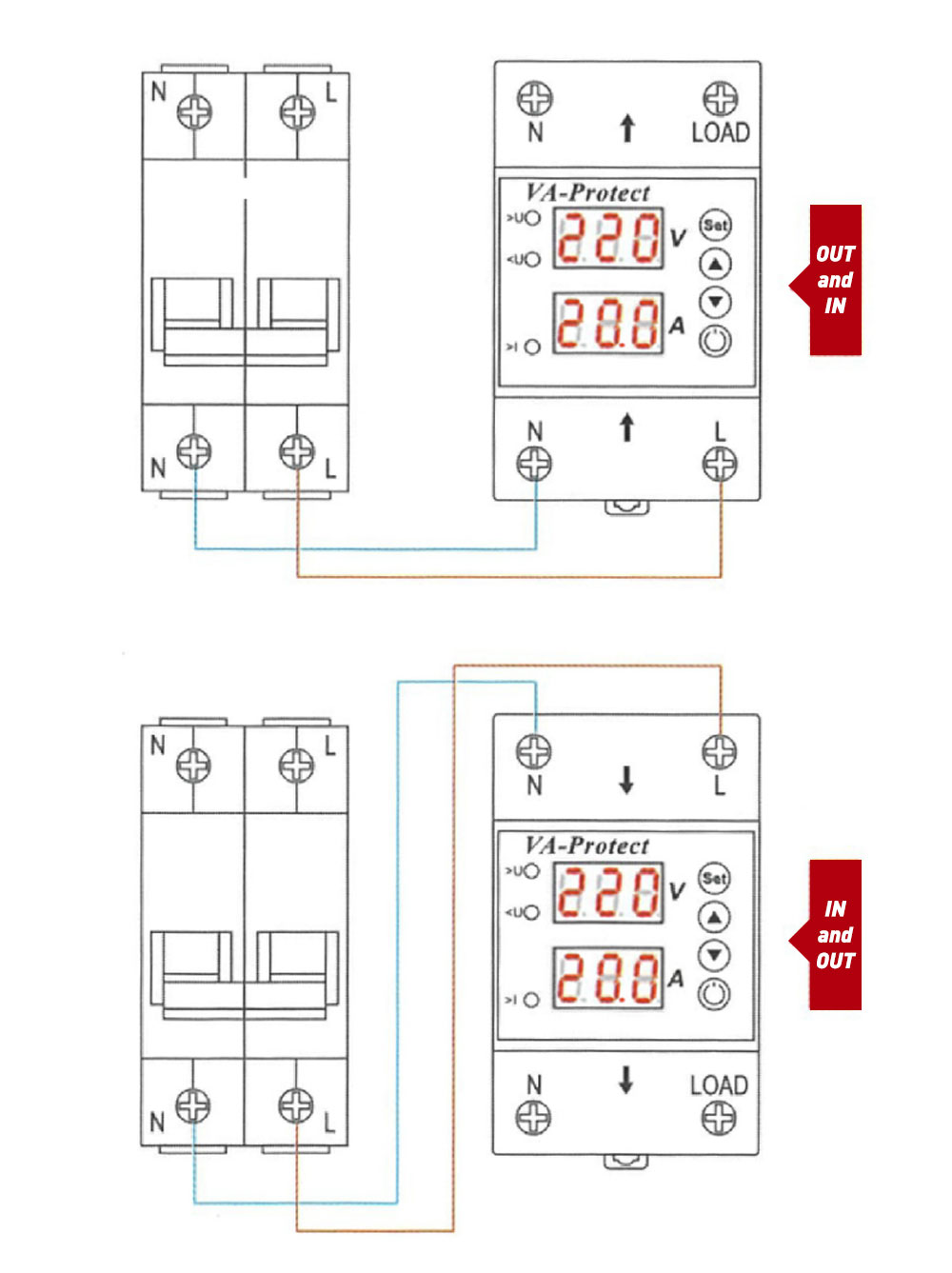

- Product wiring diagram

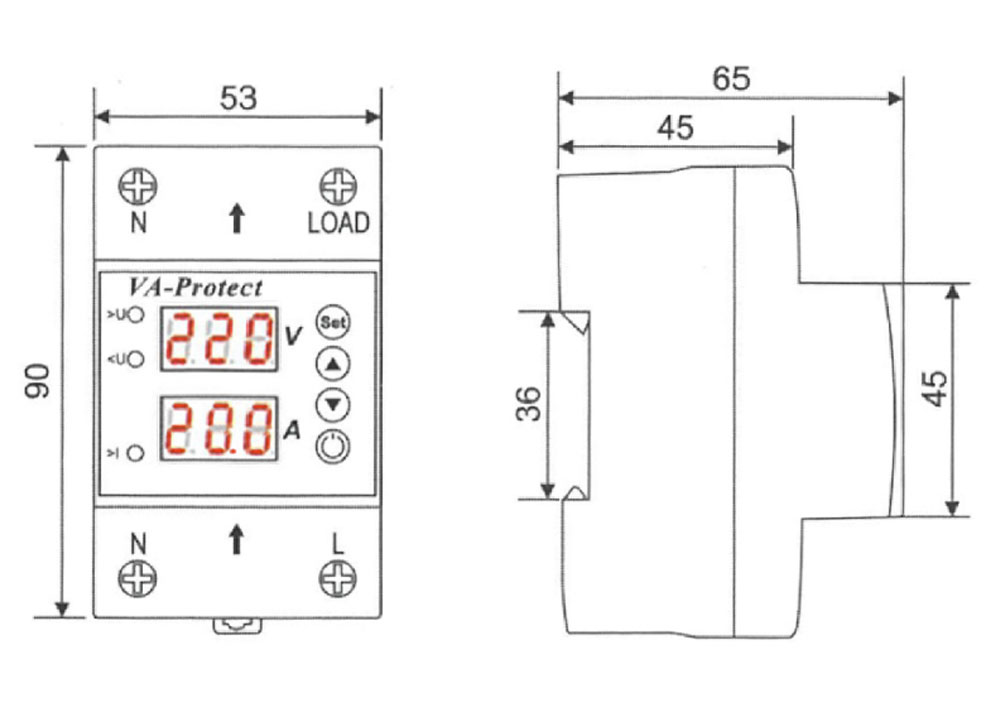

- Wiring and shape dimensions
